HF MEGA-Loop Antenna

$1,500.00

Antenna for 10-40M.

MODEL: Mega-Loop

Out of stock

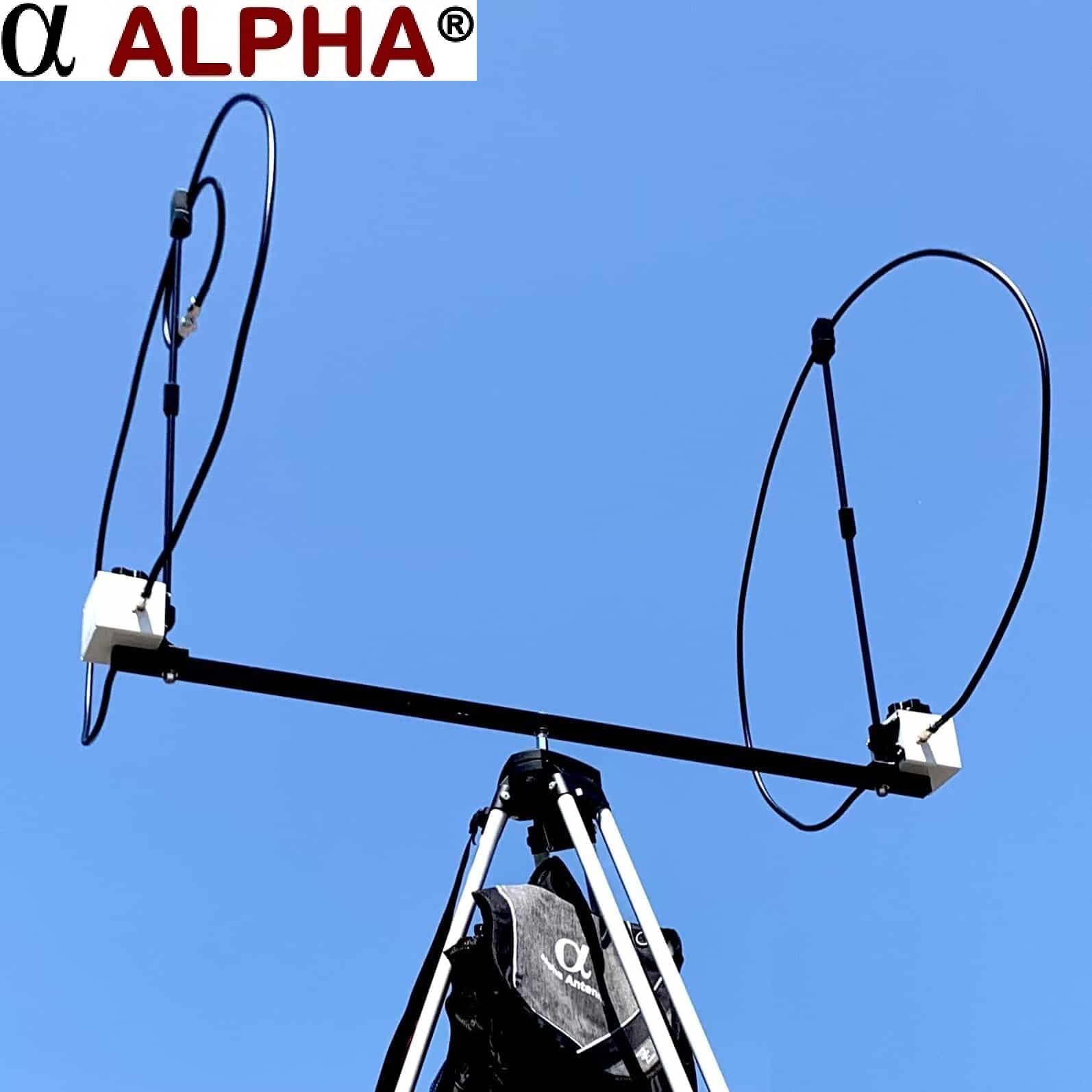

The Alpha MEGA Loop is a 10-40 meter antenna that is rated at 200W PEP SSB.

This antenna is built around our broadband technology, which requires no tuning.

Specifications:

  • Power: 200W PEP SSB
  • RF Connection: SO-239
  • Frequency: 10 – 40 Meters
  • Environmental operating parameters: -15 to 180 degrees Fahrenheit and winds up to 50 Mph

Included:

2 – Large Loops
1 – AutoMatch for tuning
1 – Boom
1 – Mast Mount for installation on a 1.25 supports

Tuning

Tuning is automatic.

Signal Pattern

The loops are placed close enough on the boom so the tuning of the first fed loop couples with second loop. Both loops are placed in the same plane so that the pattern of the first element to enable maximum exposure to the pattern of the second loop. This placement enables the signal patterns from the first element to activate the resonance across the whole surface of second element.

In other words, the elements are in the same plane for the cylindrical shape of the first element’s pattern to match the cylindrical shape of the second outer loop, which is one of the reasons the second loop to radiate efficiently.

Characteristics and Specifications

Characteristic Specification
Weight 9lb/5kg
Wind Load 2.0sqft/0.135sq m
Widest Element 3.2ft/1 m
Turning Radius 17.82ft/5.43 m
Boom Length 48in/1.23 m
Mast Hardware 1.2500in/3.175 cm to 1.3780in/3.500 cm
Power Rating 200W PEP SSB
Wind Rating 40 mph / 64 km/h
Frequency Coverage 29.7 mHz—7 mHz
Turning Rate 1.33 ft/sec – 0.405 m/sec

MINIMUM SWR ON EACH BAND (Mega Loop)

Mega Loop 40M
40M
Mega Loop 30M
30M
Mega Loop 20M
20M
Mega Loop 17M
17M
Mega Loop 15M
15M
Mega Loop 12M
12M
Mega Loop 10M
10M



Weight 144 oz
Dimensions 48 × 7 × 7 in
brand

condition

aggregateRating

availability

color

Manufacturer

VHF UHF HF Antenna type

, , , ,

review

SKU

mpn

product type

, ,

GTIN
