TM-705 Tripod Mount

$49.95

1/4 20 Tripod Mount for the Icom AL-705 Magnetic Loop Antenna

USER GUIDE

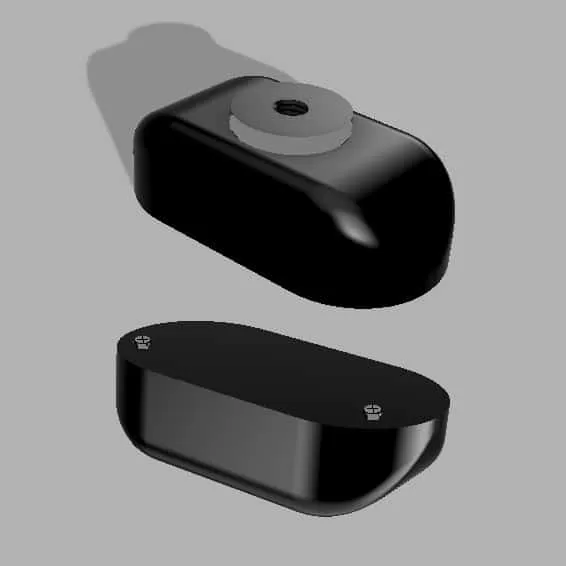

This Tripod Mount (TM-705) for the Icom AL-705 antenna will fit on any tripod with a 1/4 20 male thread. On the other side are two screws that fit into the tabs which came with your antenna, that you must first install on the tuning box of the AL-705.

This tripod mount, or TM-705, has been designed in Fusion 360, and takes 4 hours for our equipment to build. Each thermoplastic polyester unit is then finished off by hand with a milled aluminum adapter, which will fit on any tripod with a 1/4 20 male thread. On the other side are two holes that are especially formed with a tap that provide a perfect fit for the two stainless steel screws that supports the Icom AL705 antenna.

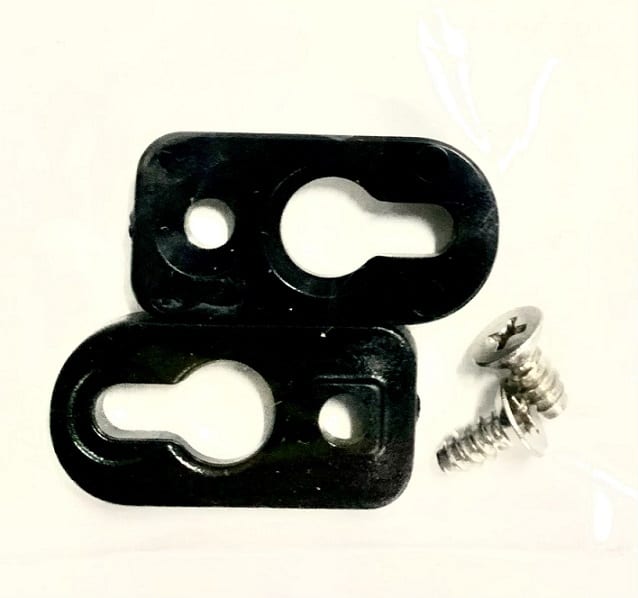

NOTE – When you received your Icom AL-705 antenna you received the following AL-705 Parts Bag, which you will need for installation of this item.

  • So, please feel free to add an AL-705 Parts Bag to your order from the Options on this page if you do not have these items.
AL-705 Parts Bag
5.0
Based on 7 reviews
5 star
100
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
1-5 of 7 reviews
  1. JM

    Perfect fit. VERY HIGH quality construction. As always, fast delivery and a fair price. AMERICAN MADE…that’s the icing on the cake.

  2. JT

    Just the thing to mount my Mag Loop on the tripod. Simple bit of kit. Brilliant design.

  3. GM

    Very good

  4. S

    When I purchased the Alpha Antenna AL-705 for my ICOM IC-705 all multiband Transceiver in England UK, I found out that I did not have the parts needed to be able to mount the AL-705 Magnetic Loop antenna onto the tripod and I also found out that you could not purchase these needed parts in the Uk. So, I got in touch direct with Alpha Antennas and they where really helpful in confirming the part numbers I needed and they also emailed me photographs of the needed parts and the cost to ship them over to my home address in the UK. On placing my order, the shipment arrived at my home address in a very short time which was well packed to protect against any damage during the shipment. I would like to take this opportunity to thank Alpha Antennas for the great work they did, which was much appreciated, thank you and keep up the great work. Best Regards from Steve G1SWS.

  5. VB

    Makes mounting the magnetic loop a lot easier

Weight 11 oz
Dimensions 7 × 5 × 1 in
