2-40M, 34′ 6″ Telescopic Element

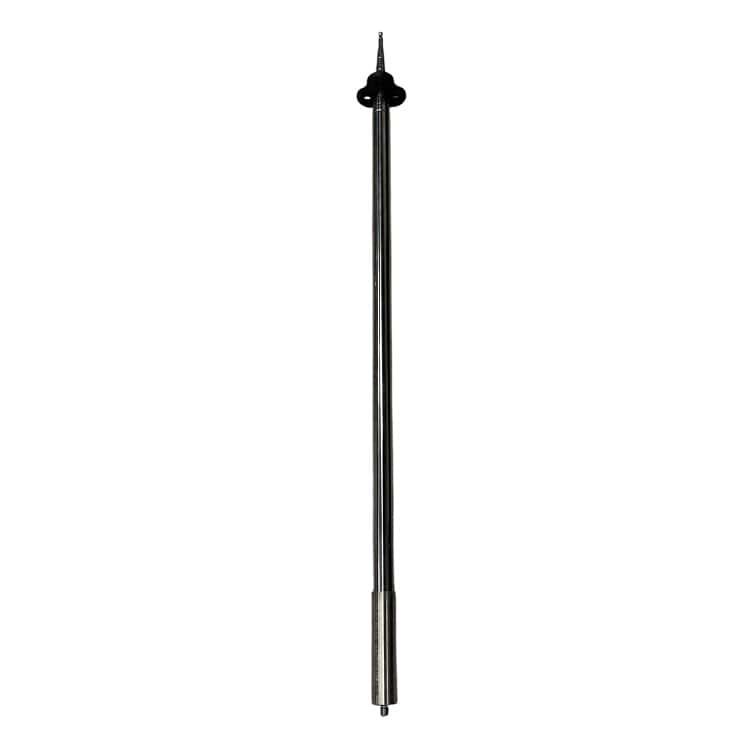

The Alpha SS34+ is a rust-resistant, 17-section stainless steel whip that extends to 34.5 feet and collapses to approximately 29 inches includes one free Heavy Duty Guy Ring Adapter.

CLICK HERE FOR THE USER GUIDE

NOTE – A 5/8 vertical with gain is configurable on 2 through 17 meters using the element. For the approximate deployed element length in feet, divide 585 by frequency in MHz.

We listen!

Suggest a price without Options and marketing will review your expectations.

Suggest a Price

Available options:

• A zippered non-padded gear bag with carrying strap. that perfectly stores the SS34+ element and its’ available options.
• The 4 x 35′ Radial Kit provides a ground plan to increase performance when attached to the included mounting bolts on the premium SS34+ stainless steel telescopic antenna, making this option an ideal choice for building your multi-band portable antenna.
• For even more stability use the SS34+ Multi-two-point Guying Kit, which includes 2 – Ultra-Light Guy Rings, 6 – 3.5mm (1/8″) Guy Lines, 6 – 10″ Stakes, and 2 – Winders for storing your Guy Lines, and
• For windier days install everything on the SS34+ Mount.

WARNINGS

Electrical precautions should always be taken when deploying antennas

The SS34+ should only be used with a sturdy mounting solution

The SS34+ should not be used with the Alpha Antenna Auto Match nor the HexTenna Hub

It is necessary to Guy this system with ropes and anchors to the included Guying Adapter when deployed for 30/40 meters or it will bend and sway. Guying may also be required on other bands if wind conditions require it.

Features:

Usage: Perfect for EmComm, POTA, SOTA, DXpeditions, and other portable deployments.
Compatibility: Equipped with a 3/8-24 mounting stud for easy integration with the Alpha Antenna ‘Top of Mast Mount’.
Durability: Laser engraved with Alpha Antenna on the base adapter, which is milled and fitted to the telescopic elements (not crimped) for ruggedness and stability.

How to attach options:

Deployment:

Deployment: Deploy by extending or retracting the telescopic whip for resonance for use as an omni-directional vertical on 40 through 2 meters when radials are installed on the ground side of a sturdy mounting solution.
Stability: Always guy this system when deployed for 30 or 40 meters.

Specifications:

PEP Rating: 1000W
Materials: Stainless Steel
Band Coverage: 2M to 40M with optional radials

Dimensions:

Base Diameter: ~ 1.00″
Largest Element Diameter: ~ 0.90″
Length (Collapsed): ~ 29″
Length (Extended): ~ 34.5′
Weight: ~ 2.3 lb.

Non-Guyed Deployment in 15MPH Wind Gust

* Guying is required when fully deployed

We are dedicated to improving all of our antennas. Specifications and descriptions are subject to change without notice.
