Base HF EmComm Antenna
$900.00
Tactical 10-160M EmComm antenna.
MODEL: Base_EmComm
This tactical wide-band system for DX NVIS and EMCOMM broadband communications is mounted low to the earth to reduce ground wave radiation, and to lower the threat of DF signal detection and also the risk of being seen.
Deployable by one person in less than 10 minutes and weighs under 5KG. This system will support all voice, continuous wave, and digital modes including ALE (automatic link establishment) spread spectrum tuner-free transmit and has low noise receive, both of which are perfect for broadband spread spectrum coverage that is encrypted or not.
SPECIFICATIONS
- Frequency: 1.6-30.0 MHz (160m – 10m Amateur Radio bands)

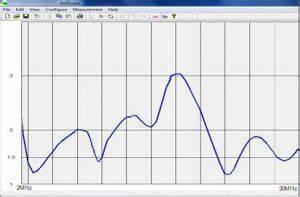

- SWR: < 3:1 on all frequencies
- Radiation Pattern: Balanced omni-directional
- Receive: Low noise receives characteristics
- Transmit: 250 PEP SSB, 125 CW, or 25 watts for digital modes. NOTE – The MIL-STD-188 M110a digital communications mode is rated at bursts of 100 watts digital for up to 1 minute using the MIL-STD Data Modem Terminal (MS-DMT) and Automated Message Terminal (AMT) software applications.
- Balanced for Transmit: Requires no additional components to maintain an approximate SWR between 1.2:1 to 3:1 during transmission.
- Height: 23 ft
- Footprint: 70 ft x 70 ft
- Weight: 5 kg
- RF Connection: 50-ohm UHF Plug (SO239)
- Set up time: Less than 10 min. for 1 person
FEATURES
- Tuner free operations
- Omni-directional DX to the HF Ground and NVIS EMCOMM patterns
- Deployment time to 10 minutes
- Weight of 5 kg

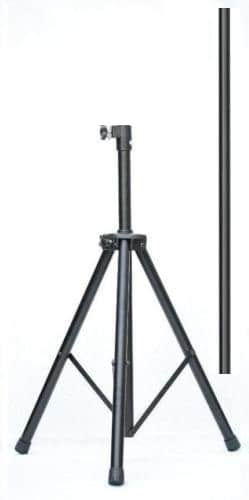

- Mount Hardware for Optional Tripod or a User Provided 1.25″ Mast
- Horizontal and Vertical Polarization
- Omni-directional signal pattern
- Integrated guying
INCLUDED
- One (1) Heavy duty 1.25″ mount and hardware
- One (1) Self-supporting telescopic vertical element with six 3′ sections and 5 Stainless steel clamps
- Four (4) 35-foot Wire NVIS Guying Elements
- One (1) Grounded Counterpoise wire & Ground stake (no additional radials are required)
PHYSICAL LAYOUT |
 |
| Physical Measurements

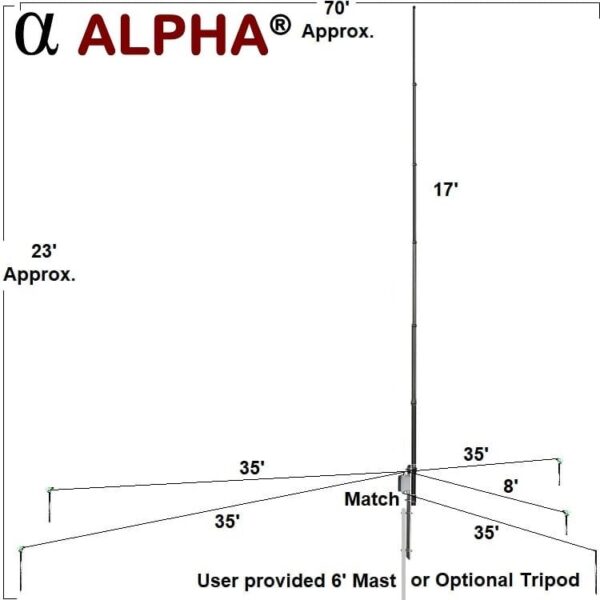

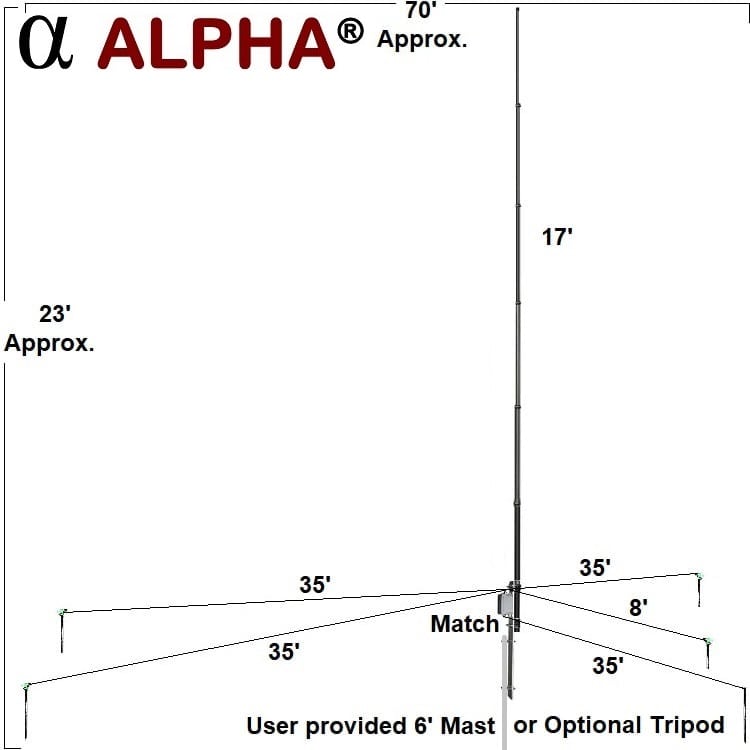

Axial radius = 30 x 30 feet Footprint = 60 feet x 60 feet Height = 24 feet Specifics Z0 – Z1 = 18 feet Z0 – Z2 = 6 feet Z1 – Z2 = 24 feet Z0 – X1 = 35 feet Z0 – X2 = 35 feet Z0 – Y1 = 35 feet Z0 – Y2 = 35 Feet Z2 – X0 = 30 feet Z2 – Y0 = 30 feet |
Analysis, Pattern, & Gain |
|
Analysis
|
|
PatternThe Z1 – Z0 Vertical element provides Groundwave coverage while it simultaneously maintains a null above the antenna. This enables the Z0, X1 & 2, and Y1 & 2 NVIS elements to enhance consistent NVIS and Sky-wave patterns, which is universally represented in the above ‘Elevation/Azimuth Pattern’ & ‘Modeled Pattern’. The Z0 – Z2 Grounded Counterpoise then completes the circuit, by providing a path to ground at the feed-point Z0.
|
|

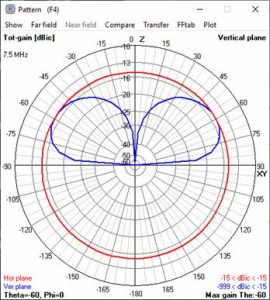

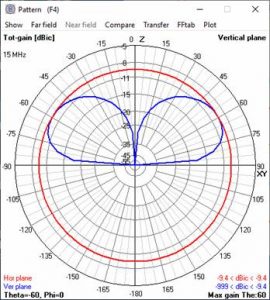

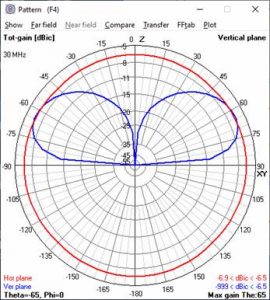

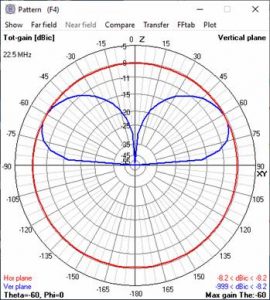

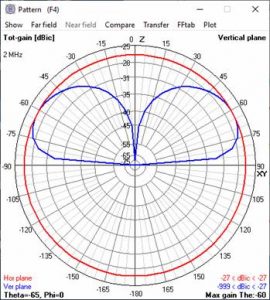

GainSome gain (directivity) is realized by the placement of the Z1 – Z0 Vertical element above the Z0, X1 & 2, and Y1 & 2 NVIS elements. For the most part, however, this antenna is onmi-directional, which results in negative gain when compared to a dipole. Fortunately, gain does not only come from antenna design. There is also “ground gain”, which can add an approximate 6 dB of additional gain to the following gain figures also represented graphically here. |
|
| 2.0 MHz
|
7.5 MHz
|
| 15 MHz
|
22.5 MHz
|
| 30 MHz
|
|
We are dedicated to improving all of our antennas. Specifications and descriptions are subject to change without notice.
REVIEWS
| 5 star | 100% | |
| 4 star | 0% | |
| 3 star | 0% | |
| 2 star | 0% | |
| 1 star | 0% |
| Weight | 144 oz |
|---|---|
| Dimensions | 48 × 7 × 7 in |
| VHF UHF HF Antenna type | HF Base Stealth Antenna Systems, HF Emergency EmComm Antennas, HF Military MilCom Antennas, HF Vertical Antennas and Packages |
| availability | |
| brand | |
| color | |
| condition | |
| Manufacturer | |
| SKU | |
| mpn | |
| review | |
| aggregateRating | |
| product type |
