HF VHF UHF HexTenna Deluxe
$600.00
Portable antenna for 2-40M 220/440MHz and tripod
MODEL: HexTenna Deluxe

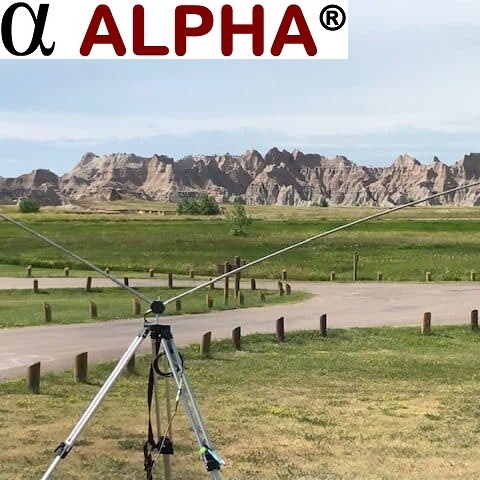

This portable HF VHF UHF is a resonant and legal limit rigid dipole and vertical antenna that covers 2 to 40 meters plus 220MHz & 440MHz.
Specifications
- Power: Full legal limit
- RF Connection: SO-239
- Frequency: 2 – 40 Meters, plus 220MHz, & 440MHz
- 80 ounces is the maximum weight when deployed as a dipole
- Packable at a size of 24 x 4 1/2 inches
- Environmental operating parameters: -15 to 130 degrees Fahrenheit and winds up to 35 Mph when guyed, otherwise 15 Mph.

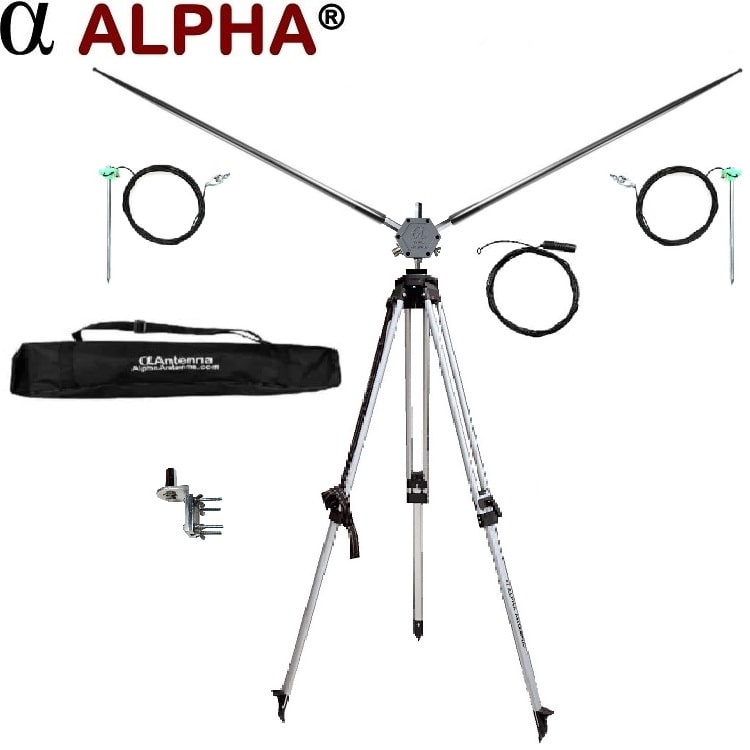

Included
- 2 – 5.41 meter (17′ 9″) telescopic stainless-steel whips (with “Alpha Antenna” laser engraved)
- 1 – HexTenna hub
- 2 – 30/40 meter wire clip-on 18′ elements (one set)
- 1 – 31 foot counterpoise for use on 12-20 meters
- Please note that Counterpoise are highly efficient tuned elements that are deployed at resonant lengths by rolling out the coil of wire.
- 1 – HD Surveyor Tripod
Deployment
For temporary outdoor use, deployment can be achieved using the included Top of Mast Mount, which can be affixed to any sized pipe between 1 to 1 1/4 inch outside diameter. It is recommended that you ALWAYS guy this system. For guying options see the Mast Guying Adapter to stabilizes deployments.
NOTE – There is no upgrade path to the HexTenna Yagi, as it has a different design, and the hubs are physically mounted on the boom.

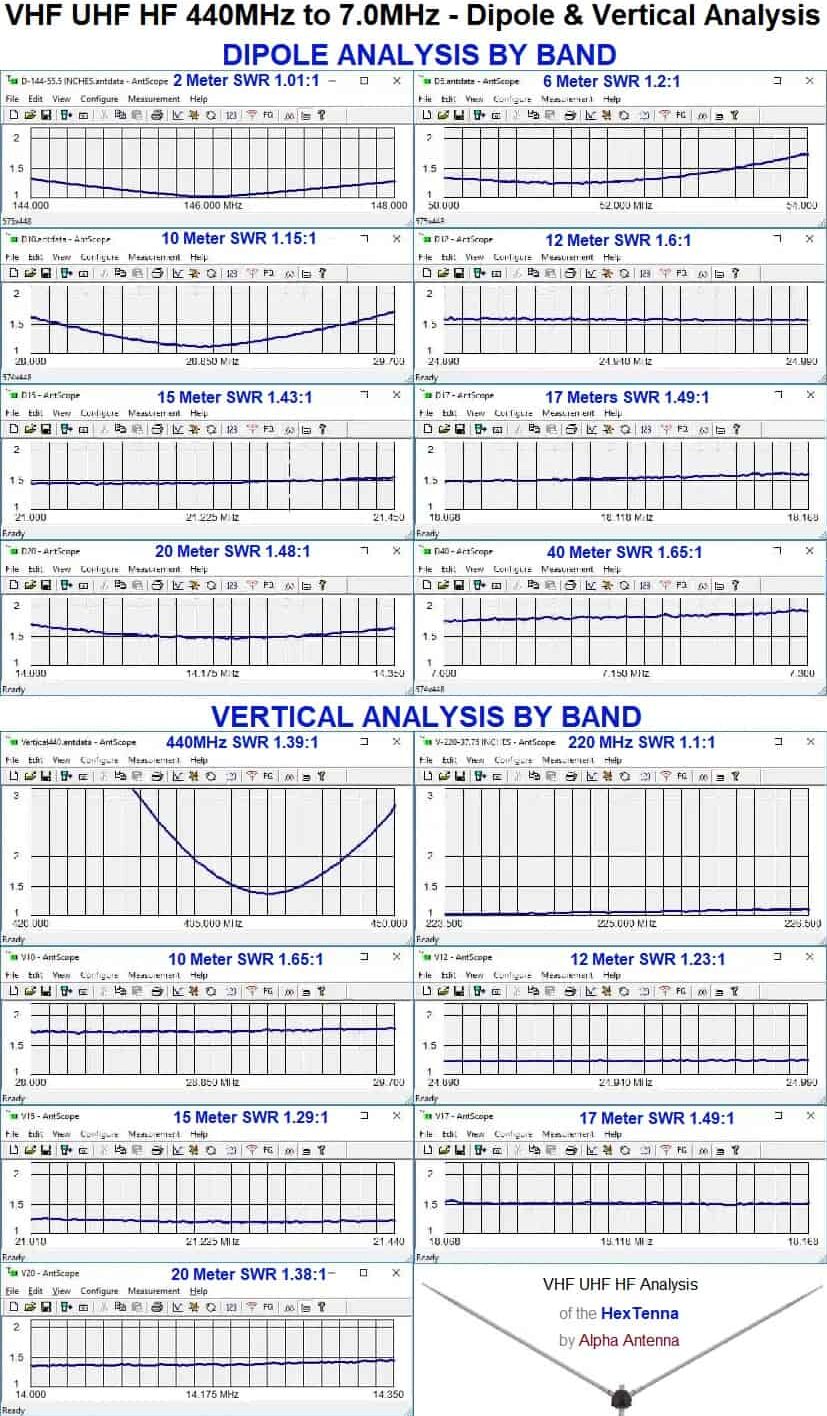

Analysis
Download the Scans for the AntScope application: Download Scans here
| DIPOLE CONFIGURATION | VERTICAL CONFIGURATION | |||
| Band | SWR | Band | SWR | |
| 2 Meters | 1.01:1 | 440 MHz | 1.39:1 | |
| 6 Meters | 1.2:1 | 220 MHz | 1.1:1 | |
| 10 Meters | 1.15:1 | 10 Meters | 1.65:1 | |
| 12 Meters | 1.6:1 | 12 Meters | 1.23:1 | |
| 15 Meters | 1.43:1 | 15 Meters | 1.29:1 | |
| 17 Meters | 1.49:1 | 17 Meters | 1.49:1 | |
| 20 Meters | 1.48:1 | 20 Meters | 1.38:1 | |
| 40 Meters | 1.65:1 | – | – | |
More Information
The whips for the HexTenna Deluxe are telescopic, so as to enable you to adjust them for the band you are using. These whips are angled to change the naturally occurring 72-ohm dipole component to 50 ohms. This is not a ‘no tune all-band antenna’. For example, when deployed for 20 meters, it has two self-supporting telescopic whips that have a total deployed length of about 34 feet. The resonance is naturally occurring as you adjust the whips for the band you would like to operate on. Furthermore, when deployed on 40 meters, then this antenna becomes an M-Dipole that is 35 feet 9 inches on each side.
Options

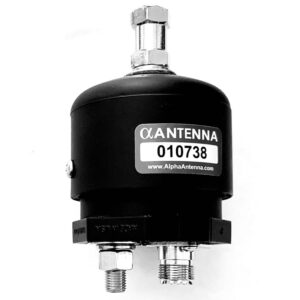

AutoMatch: The AutoMatch enables a tuner to provide you with touch free matching from 10 through 80 meters and has a power rating of 250W PEP SSB, 125W CW, and 25W Digital.
Videos
Run over and beaten! Will the HexTenna survive?
5 feet vs 20 feet, results in 1/2 an S-Unit is the difference when mounting the HexTenna.
Is the whip really 17 feet 9 inches long?
Here is a quick fix when your whip gets stuck.
We listen!
Specifications, prices, and descriptions are subject to change without notice.
Reviews
| 5 star | 100% | |
| 4 star | 0% | |
| 3 star | 0% | |
| 2 star | 0% | |
| 1 star | 0% |
| Weight | 240 oz |
|---|---|
| Dimensions | 41 × 7 × 7 in |
| availability | |
| brand | |
| color | |
| condition | |
| Manufacturer | |
| product type | |
| GTIN | |
| mpn | |
| aggregateRating | |
| review | |
| SKU | |
| VHF UHF HF Antenna type | HF Dipole Antennas, HF Emergency EmComm Antennas, HF Military MilCom Antennas, HF Portable Stealth Antennas, HF Vertical Antennas and Packages, VHF UHF Dipole Antennas, VHF UHF Emergency EmComm Antennas, VHF UHF Military Antennas |
Q & A
5 feet is the minimum optimum height for mounting this above ground and optimum height is 1/4 wavelength. The difference between 5 feet and 20 feet was 1/2 an S-Unit per https://youtu.be/8EbLeiUxJuM
No. The physical differences of the HexTenna Yagi Hubs are very different than those of the HexTenna, making a conversion impractical.
The Yagi hubs are also built to be mounted on a boom, which the HexTenna hub is not well suited for. Specifically, because they would spin on the hub when against the wind.
Additionally, even the 2 hubs used on the Yagi are built differently from one another. Where one of the hubs is built to be a driven element and the other is built to be a reflector element.
