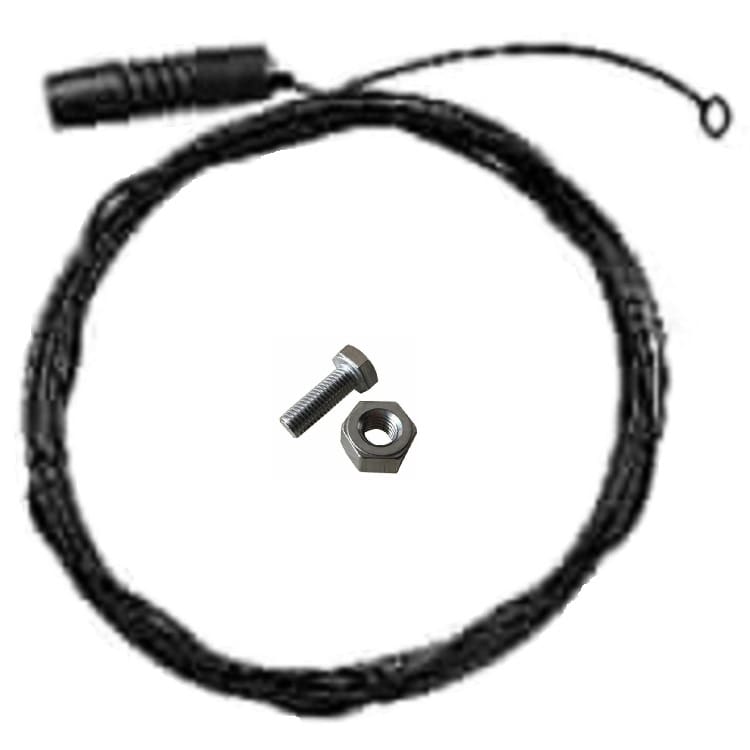

End-fed element + Nut/Bolt
$39.00
End-fed element for the Auto Match units from Alpha Antenna (default length 34-feet)
This kit activates the Auto Match from Alpha Antenna for NVIS for EmComm or DX for long distance. An external antenna tuner can be used if your antenna is installed over a poor ground or not placed in a clear area.
INCLUDED
- 34 feet of pre-built wire antenna element (Unless other length is selected).
- 3/8 24 Nut & Bolt
DEPLOYMENT INFORMATION
Read more about deployment options here: End-Fed antenna Tips
ANALYSIS

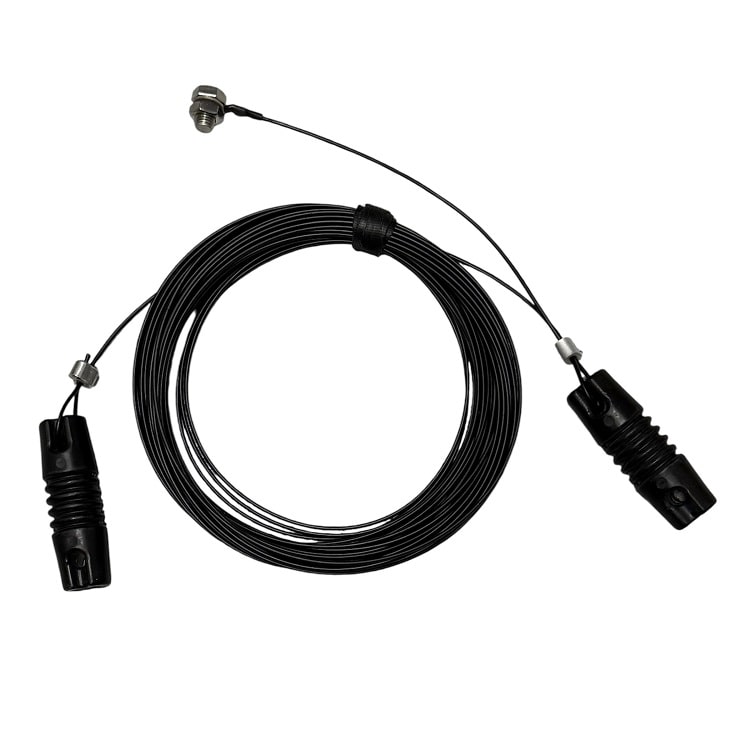

| 60 Foot element | |
| Band | SWR |
| 10 Meters | 1.61 |
| 12 Meters | 2.43 |
| 15 Meters | 1.75 |
| 17 Meters | 1.52 |
| 20 Meters | 2.20 |
| 40 Meters | 2.67 |
| 80 Meters | 2.08 |
| 34 Foot element | |
| Band | SWR |
| 6 Meters | 1.50 |
| 10 Meters | 2.39 |
| 12 Meters | 2.49 |
| 15 Meters | 1.60 |
| 17 Meters | 2.9 |
| 20 Meters | 2.5 |
| 40 Meters | 2.9 |
| Weight | 16 oz |
|---|---|
| Dimensions | 9 × 8 × 3 in |
| Manufacturer | |
| availability | |
| brand | |
| condition | |
| product type |
