SWR Indicator for MagLoops

Rated 5.00 out of 5 based on 4 customer ratings

$49.95

Visual indicator for tuning the SWR of a MagLoop.

Model: SWR_Indicator

SWR Indicator is a simple device for Magnetic Loop MagLoop antennas that makes tuning easier. We originally introduced this in 2013 and it is now redesigned as an option for all loops, which is especially useful if you have a disability such as being hearing impaired.

EASY TO USE!

A) Simply clip-on the SWR Indicator to the tuning box PL259,

B) Set rig to SSB and tune for loudest audible noise floor,

C) Use 5W & FM mode to transmit while tuning for brightest illumination on the LED.

WARNING!

Remove after tuning and do not exceed 10 Watts Continuous Carrier (FM, Digital, AM, etc.) while tuning or the indicator lamp will fail.

Can be used on higher power loops only if the SWR Indicator is removed after tuning.

INSTRUCTIONS:

  1. Install by attaching the Copper Clip to either of the PL259s at the loop’s tuning box.
  2. Set your rig to the desired frequency in SSB mode.
  3. Tune loop till the loudest noise floor is heard from your rig’s speaker.
  4. Set rig to FM mode at 5 watts.
  5. Transmit and tune for brightest illumination on the SWR Indicator’s LED.

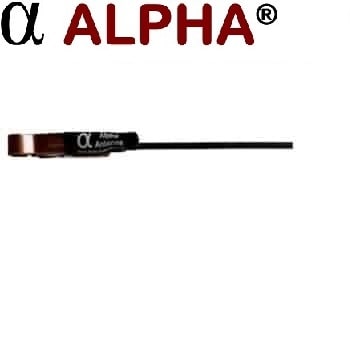

ASSEMBLED

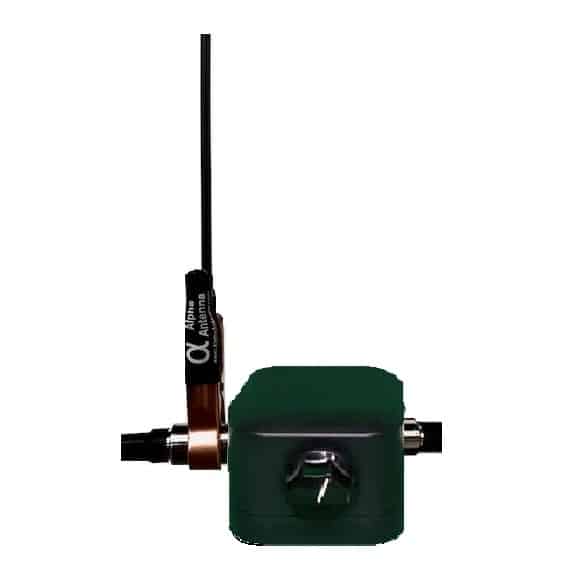

SWR INDICATOR INSTALLED

We listen!

Suggest a price so our marketing team may ensure our prices align with your expectations.

Specifications, prices, and descriptions are subject to change without notice.

5.0
Based on 4 reviews
5 star
100
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
1-4 of 4 reviews
  1. SD

    WORKS PERFECTLY !!!!

  2. DP

    It works. Nice bright green led when it tuned

  3. JT

    Excellent to getting a fine tune on the loop.

  4. NF

    This was the best item I ever ordered for my alpha mag loop antenna. This is a must if you own a mag loop antenna. Makes tuning so much easier. 5 STARS!

Weight 9 oz
Dimensions 5 × 7 × 1 in
SKU

VHF UHF HF Antenna type

product type

aggregateRating

availability

brand

color

condition

Manufacturer

mpn

review

Q & A

Will this device work with other brand loop antennas with a tuning box and similar coax setup? Jim Southwick asked on November 18, 2023

The SWR Indicator works well with other brand loop antennas. The SWR Sounder does as well.

admin answered on November 25, 2023 store manager
