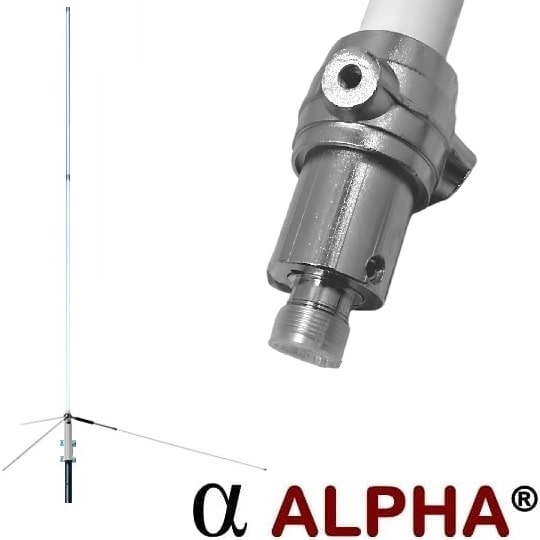

The Alpha Antenna UV6 is a quad-band model that uses a linear phase shift for frequency coupling on the 6-meter, 2-meter, 1.25 (220MHz) and 70cm (440MHz) bands. This antenna has a watertight joint assembly, joining two parts into a solid and durable single piece.
Features
- Weatherproof fiberglass enclosure
- Overlapping outer shells for extra strength
- Sturdy waterproof joint couplings
- Stainless steel hardware
- Wide frequency coverage
- Exceptional gain performance
- High wind resistance
- Three radials
Specifications
- Total Height: 8 feet 4 inches
- Materials: Fiberglass and metal
- Power Rating: 150 Watts
- Grounding: Element and radials connect to mounting pipe
- Connector: UHF female (SO-239)
- Mounting Type: Included clamp-on mast mount
- Mast Clamp Size Range: 1.25 to 2.25 inches
- Wind Survival: Up to 110 mph
- Weight: 2.5 pounds
Gain
- 6 meters (50–54 MHz): 2.1 dBi
- 2 meters (144–148 MHz): 6.2 dBi
- 1.25 meters (220-225 MHz): 7.3 dBi
- 70 cm (440–450 MHz): 8.4 dBi
Additional Information
Antenna SWR may be influenced by height above ground, nearby obstacles, and grounding/coax setup. Radio manufacturers typically reduce power when SWR approaches 2.9:1; the UV6 can always be tuned below this threshold. NOTE – In practice, an SWR of 1.5:1 versus a 2.9:1 SWR yields minimal difference in transmit/receive efficiency (signal strength) per THIS INFORMATION.
We listen!
Please note that specifications, prices, and descriptions are subject to change without prior notice.
