VHF/UHF/HF Basic HexTenna™ Vertical/Dipole

VHF/UHF/HF Basic HexTenna™ Vertical/Dipole

$299.00

The HexTenna™ by Alpha Antenna® is a legal limit and full size portable VHF/UHF/HF system that is deployable as a Vertical, Dipole, or *Yagi. *Additionally deployable as a Yagi when the Yagi add-on option is selected at the top of this page.

SKU: Basic_HexTenna Categories: , , Tags: , ,

Description

Summary – The HexTenna™ by Alpha Antenna® is a legal limit and full size portable VHF/UHF/HF system that is deployable as a Vertical, Dipole, or *Yagi. *Additionally deployable as a Yagi when the Yagi add-on option is selected at the top of this page.

Download the Data Sheet: Download the Data Sheet here

Description – This antenna is a full-sized HF/VHF Dipole and HF/VHF/UHF Vertical, which is also configurable as a HF/VHF Yagi beam by using the optionally available ‘HexTenna Yagi’ add-on from the selections listed above. This is a high performance antenna system, not a not a ‘no tune all-band antenna’. There are no lossy traps, baluns, or coils that have to be manually tapped whe changing frequencies. Rather, the whips for the HexTenna™ are full-sized Telescopic elements that extend to 17 feet 9 inches. This design enables you to adjust the whips/counterpoise, and make the HexTenna™ resonate as close as possible for the band you are using. For example, when deployed for 20 meters, the system has two self supporting telescopic whips that have a total deployed length of about 34 feet.

Deployment – The Hextenna™ is packable into a 24 x 4 1/2 inch space. Deployment can be achieved using the included Top of Mast Mount, which can be affixed to any sized pipe between 1 to 1 1/4 inch outside diameter. It is recommended that you ALWAYS guy this system, with the exception of deployment on the optional & recommended HD-Tripod or with the included Top of Mast Mount affixed firmly to a well supported user provided mast.

Specifications:
• Power: Full legal limit
• RF Connection: SO-239
• Frequency: 2 – 40 Meters, plus 220MHz, & 440MHz

Included:

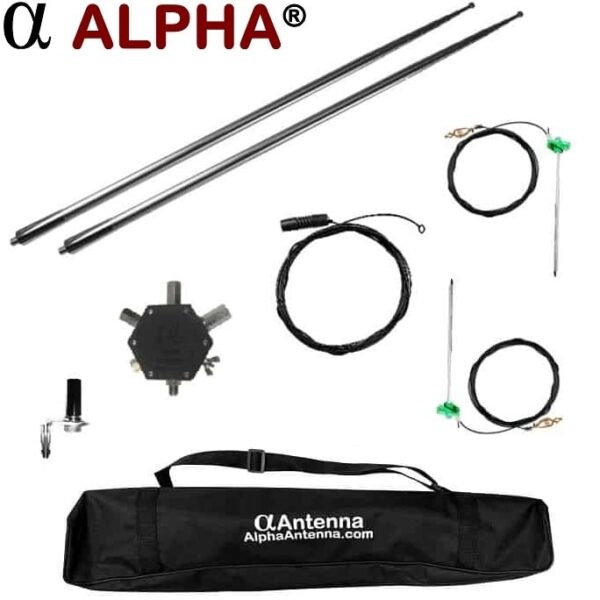

2 – 5.41 meter (17′ 9″) telescopic stainless steel whips (with “Alpha Antenna” laser engraved)
1 – Hextenna™ hub
2 – 30/40 meter clip on wire elements
1 – 12-20M Counterpoise (31′)
1 – Top of Mast Mount

Analysis of the Alpha Hextenna™

Download the Scans for the AntScope application: Download Scans here

Gain of the HexTenna Yagi at 5 1/2 feet more is shown in this document. That gain more than doubles when placed higher.
Download the gain document for the HexTenna HERE

2 Meter Dipole

220 MHz Vertical

440 MHz Vertical

Dipole Configuration Results
6 Meter Dipole

10 Meter Dipole

12 Meter Dipole

15 Meter Dipole

17 Meter Dipole

20 Meter Dipole

40 Meter Dipole (with Optional add-on wire element)

Vertical Configuration with 4 user supplied counterpoise cut to size per the user guide
10 Meter Vertical

Vertical Configuration with optional add-on counterpoise or 4 user supplied counterpoises cut to size per the user guide
12 Meter Vertical

15 Meter Vertical

17 Meter Vertical

20 Meter Vertical

If you have a suggestion on price or how to improve this product, please send us your feedback by clicking here.

Additional information

Weight 80 oz
Dimensions 31 × 7 × 7 in
