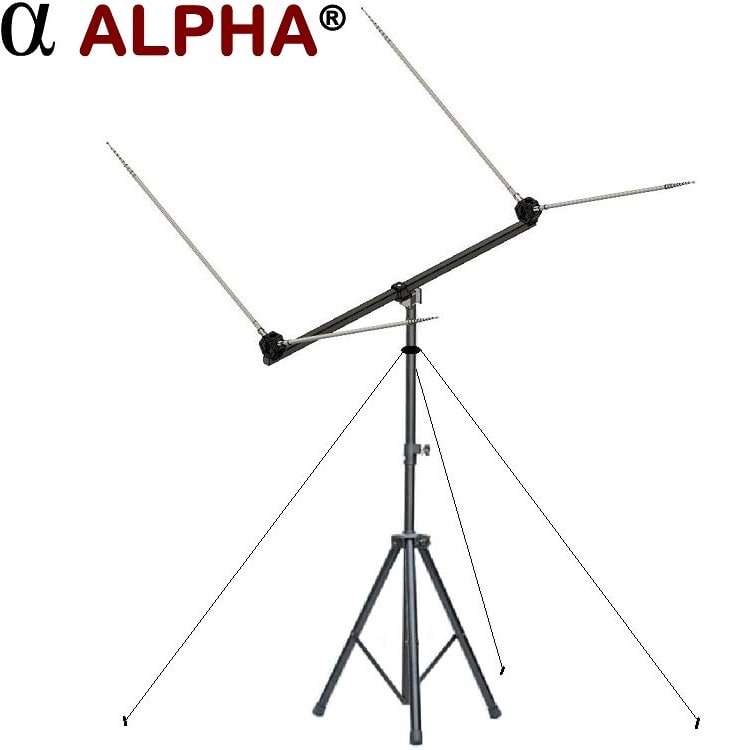

HF VHF HexTenna Yagi Deluxe
$800.00
Yagi antenna for 2-20M with 144-13.850MHz coverage.
MODEL: HexTenna Yagi Deluxe
The HexTenna Yagi Beam by Alpha Antenna® is a 2 through 20 meters, legal limit, and full-size portable VHF/HF system for amateur ham radio and continuous coverage from 144-13.950MHz for military operations.
Specifications:
- Power: Full legal limit
- RF Connection: SO-239
- Frequency: 2 – 20 Meters
- Environmental operating parameters: -15 to 130 degrees Fahrenheit and winds up to 50 Mph when appropriately guyed.
Included:
4 – 17 foot 9 inch telescopic stainless-steel whips (with “Alpha Antenna” laser engraved)
1 – 4 foot boom
2 – Hubs
1 – Top of Mast Mount for installation on a 1.25 to 1.35 inch mast
1 – Non-padded field bag that fits all but the boom.
1 – 1.25″ Guying Adapter for Tripod Mast & 3 Aluminum stakes each with 25′ Black Paracords & Holder.
1 – 5’9″ Tripod and Mast.
Analysis
Download the following results for the AntScope application here
Download Yagi gain document CLICK HERE
Properties:
| Characteristic | Specification |
| Weight | 19lb/8.62kg |
| Wind Load | 4.0sqft/0.37sq m |
| Longest Element | 34ft 9inches/10.6 m |
| Turning Radius | 17.82ft/5.43 m |
| Boom Length | 48in/1.23 m |
| Mast Hardware | 1.2500in/3.175 cm to 1.3780in/3.500 cm |
| Power Rating | 3KW |
| Wind Rating | 40 mph / 64 km/h |
| Frequency Coverage | 54 mHz—14.350 mHz |
| Tuning Rate | 1.33 ft/sec – 0.405 m/sec |
Deployment
For temporary outdoor use, deployment can be achieved using the included Top of Mast Mount, which can be affixed to any sized pipe between 1 to 1 1/4 inch outside diameter. It is recommended that you ALWAYS guy this system.
Videos
Gain demo of Alpha Yagi Beam & Alpha Vertical
Gain difference between mounting the HexTenna 15 feet vs 6 feet.
Spoiler alert: Moving the HexTenna from the 5 1/2 foot HD Tripod to a 15-foot mast increases your signal by half (1/2) an S-Unit.
Environmental Tests

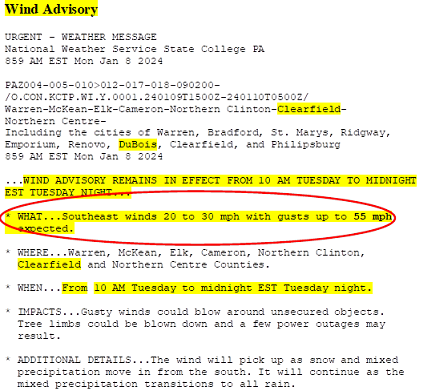

Independent environmental tests by Steven Smith K3SKS with the system deployed in 55 mph, wind gusts and ice on the elements, which enables us to rate this system for 50 mph winds.
We listen!
Suggest a price for the antenna only without Options and marketing will review your expectations.
Specifications, prices, and descriptions are subject to change without notice.
Reviews
| 5 star | 100% | |
| 4 star | 0% | |
| 3 star | 0% | |
| 2 star | 0% | |
| 1 star | 0% |
Boom Doubler Option
Our boom doubler, which will be released later during this Summer of 2024, increases the length of the boom to 96 inches/2.46m. This is done by adding a supporting boom, which is called a ‘joiner’ under two 48 inch booms. Once the two booms are mounted on the joiner with included hardware, then a mast clamp is then affixed at the center of the joiner. This mast clamp will then affix to any standard 1.25 inch mast.
| Weight | 144 oz |
|---|---|
| Dimensions | 48 × 7 × 7 in |
| brand | |
| condition | |
| Manufacturer | |
| mpn | |
| product type | Portable HF VHF UHF Antennas, VHF UHF HF Antennas, Yagi LPDA Beam |
| aggregateRating | |
| availability | |
| color | |
| review | |
| SKU | |
| VHF UHF HF Antenna type |
Q & A
5 feet is the minimum optimum height for mounting this above ground and optimum height is 1/4 wavelength. The difference between 5 feet and 20 feet was 1/2 an S-Unit per https://youtu.be/8EbLeiUxJuM
There is no upgrade path to the Yagi, as it has a different design, and the hubs are physically and pretty much permanently mounted on the boom.
